    EL8 Solar LED Headlamp-Solar Panel combination, Specifications

    This website is FOR SALE!
    includes ALL JV offers/contacts

    e-mail your offer to

    Click for EL8 Text Format Specifications with pictures and videos

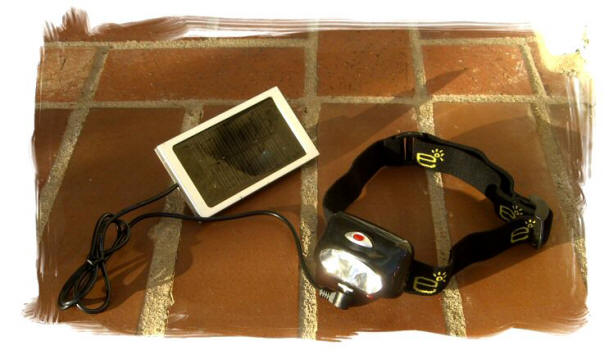

    EL8 Solar energy LED Headlamp-Solar Panel Showing EL8 Headlamp

    being charged by the

    Solar Panel (included)

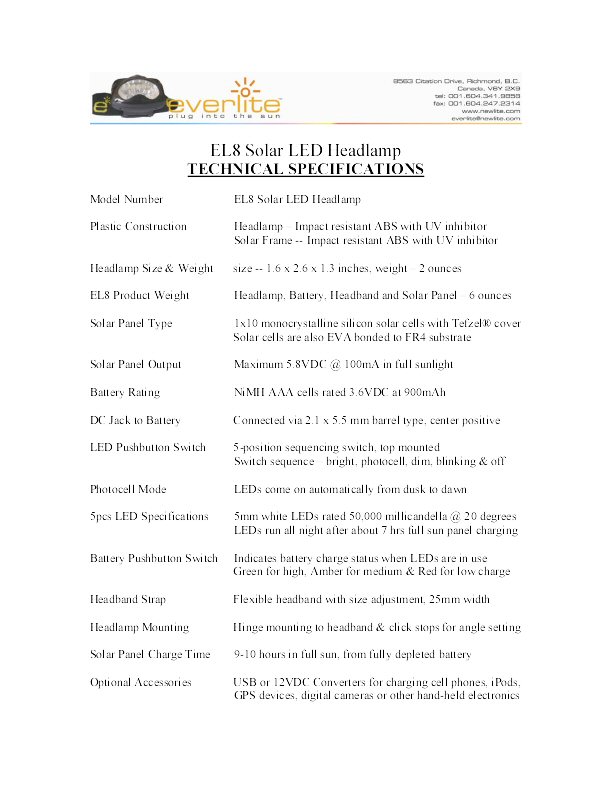

    El8 Solar LED Headlamp Specifications

    Model Number EL8 Solar LED Headlamp
    Plastic Construction Headlamp – Impact resistant ABS with UV inhibitor

    Solar Frame – Impact resistant ABS with UV inhibitor

    Headlamp Size & Weight Size—1.6 x 2.6 x 1.3 inches, weight – 2.7 ounces
    EL8 Product Weight Headlamp, Battery, Headband and Solar Panel – 6 ounces
    Solar Panel Type 1x10 monocrystalline silicon solar cells with Tefzel® cover

    Solar cells are also EVA bonded to FR4 substrate

    Solar panel Output Maximum 5.8VDC @ 100mA in full sunlight
    Battery Rating NiMH AAA cells rated 3.6VDC at 900mAh
    DC Jack to Battery Connected via 2.1 x 5.5 mm barrel type, center positive
    LED Pushbutton Switch

    EL8 Solar Headlamp sequencing On-Off button

    5-position sequencing switch, top mounted

    Switch sequence – bright, photocell, dim, blinking & off

    Photocell Mode LEDs come on automatically in dark areas; from dusk to dawn
    5pcs LED Specifications 5mm white LEDs rated 50,000 millicandela @ 20 degrees LEDs run all night after about 7 hours full sun panel charging

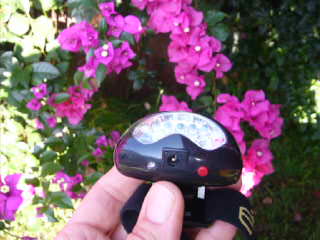

    Battery Gauge Pushbutton Switch


    EL8 Solar Headlamp Battery Check Pushbutton

    Indicates battery charge status when LEDs

    are in use (headlamp ON): Green for high,

    Amber for medium & Red for low charge
    Headband Strap Flexible headband with size adjustment, 25mm width
    Headlamp Mounting Hinge mounting to headband & click stops for angle setting
    Solar Panel Charge Time 9-10 hours in full sun, from fully depleted battery
    Optional Accessories USB or 12VDC Converters for charging cell phones, iPods, GPS devices, digital cameras or other hand-held electronics.
